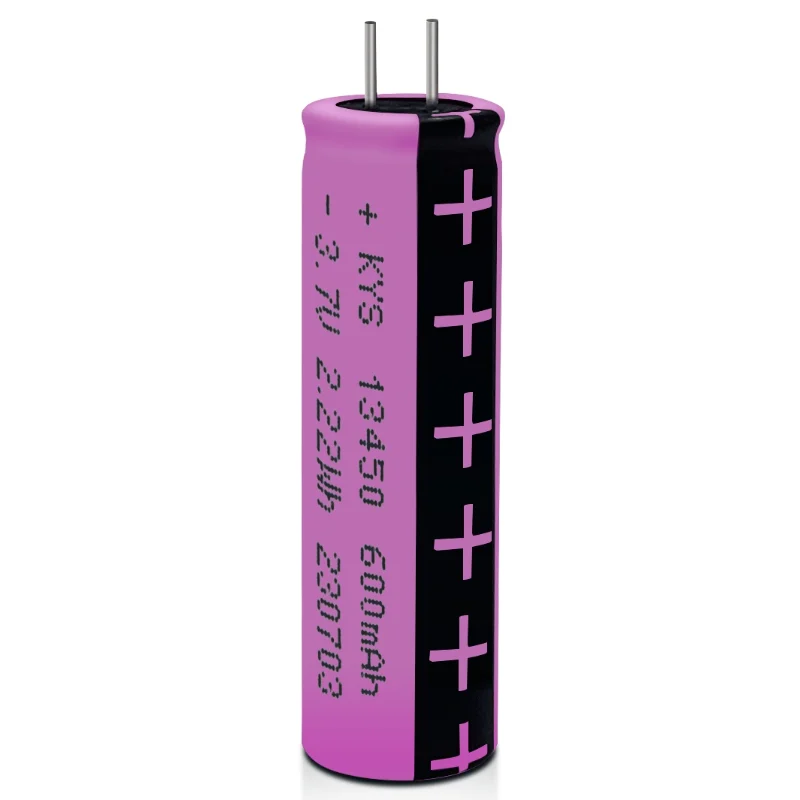

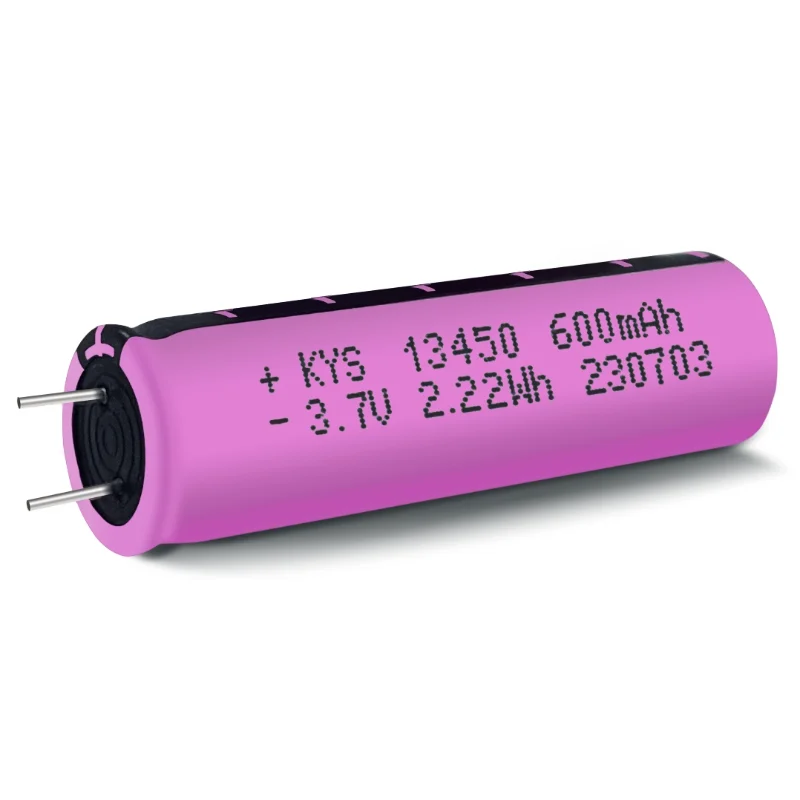

홈 / 13450 3.7V 소형 원통형 리튬이온 배터리
This 13450 3.7V lithium capacitor battery delivers steady voltage output, ultra-low self-discharge and high 20C rate performance. Built with full multi-protection circuits, it has long cycle lifespan, customizable specifications and wide compatibility for diverse portable smart electronic devices.
- Model: 13450 Lithium-Ion Capacitor
- Cell Size: 13.3(Diameter)×45.7 mm
- 명목 전압: 3.7 V
- 방전 전류: 3 A
- 용량: 580~600mAh
- 내부 저항: 45 mΩ
- 적용 범위: 전자 제품
- 충전 전압: 4.2V
무료 견적 받기
제품 목록으로 돌아가기
개요
Compact Cylindrical Lithium Battery Structural Overview
Engineers construct the compact cylindrical lithium battery (13450 series, 3.7V class) using a tightly controlled micro roll-core architecture. First, they laminate cathode foil, anode foil, and separator film into a continuous layered strip, and they wind it into a compact spiral core under controlled tension. Meanwhile, they regulate alignment precision to keep electrode spacing uniform throughout the winding process. After that, technicians insert the finished core into a compact cylindrical metal casing and stabilize its internal geometry before electrolyte filling begins.
Material Composition and Electrochemical Layers
Manufacturers coat lithium transition-metal oxide onto aluminum foil to form the cathode layer, while they apply graphite-based slurry onto copper foil to build the anode layer. In addition, they introduce a PP/PE microporous separator to support lithium-ion transport and prevent internal short contact. Furthermore, they prepare an organic carbonate electrolyte containing lithium salts such as LiPF6, and they strictly control moisture levels to maintain chemical stability. Meanwhile, the cylindrical shell uses high-strength steel or aluminum alloy to ensure structural rigidity and sealing performance.
전극 제작 및 권선 공정
Technicians mix active materials, conductive carbon, and polymer binders into a uniform slurry system, and they coat it onto metal foils using precision coating equipment. Then, they dry the coated electrodes through staged thermal processing to remove residual solvents. Subsequently, they compress electrode surfaces through calendaring to regulate density and thickness consistency. After cutting the electrodes into narrow strips, they feed them into automated winding machines to form a uniform jelly-roll core. Meanwhile, they weld electrode tabs using ultrasonic or resistance methods to ensure stable electrical connections.
Formation Cycling and Standard Compliance System
Engineers initiate formation cycling to activate electrochemical reactions and stabilize internal interfacial layers. Then, they conduct aging tests under controlled temperature environments to evaluate voltage stability and impedance behavior. Finally, quality teams perform dimensional inspection, insulation resistance testing, and sealing verification. Throughout production, manufacturers comply with IEC 62133 and UN38.3 standards, ensuring structural integrity, electrical consistency, and transport safety compliance for compact cylindrical lithium battery manufacturing.
제품 세부사항
제품 특징
- 🛠️ 커스터마이징 가능
고객 요구에 맞게 맞춤화 가능하다 - ⚡ 하이파워
최대 20C 방전 가능 가능 - ⏱️ 긴 주기 수명
장기적인 제품 사용 요구를 충족합니다 - 🛡️ 높은 안전성
종합 안전 시험 통과 - 🔋 진정격 용량
제품 설계 역량에 부합합니다 - ⚛️ 다중 화학 옵션
LCO, NCM, NCA 및 LFP 시스템을 다룹니다 - 🧰 다중 보호 메커니즘
과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드
제품 적용 분야
이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:
-
개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기
-
스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명
-
재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
기술 매개변수
| 모델 | KYS 13450 |
| 셀 크기 | 13.3(Diameter)×45.7 mm |
| 방전 전류 | 3 A |
| 작동 전압 | 3.7 V |
| 수용 인원 | 580~600 mAh |
| 내부 저항 | 45 mΩ |
| 처리 방법 | 요청별로 맞춤 |
| 적용 범위 | 전자 제품 |
| 충전 전압 | 4.2 V |
