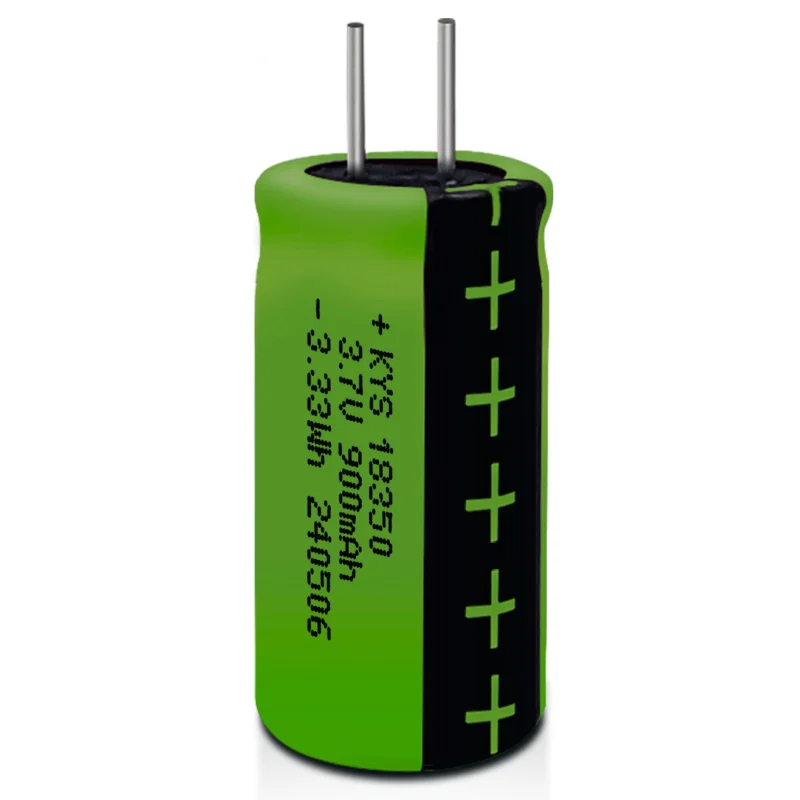

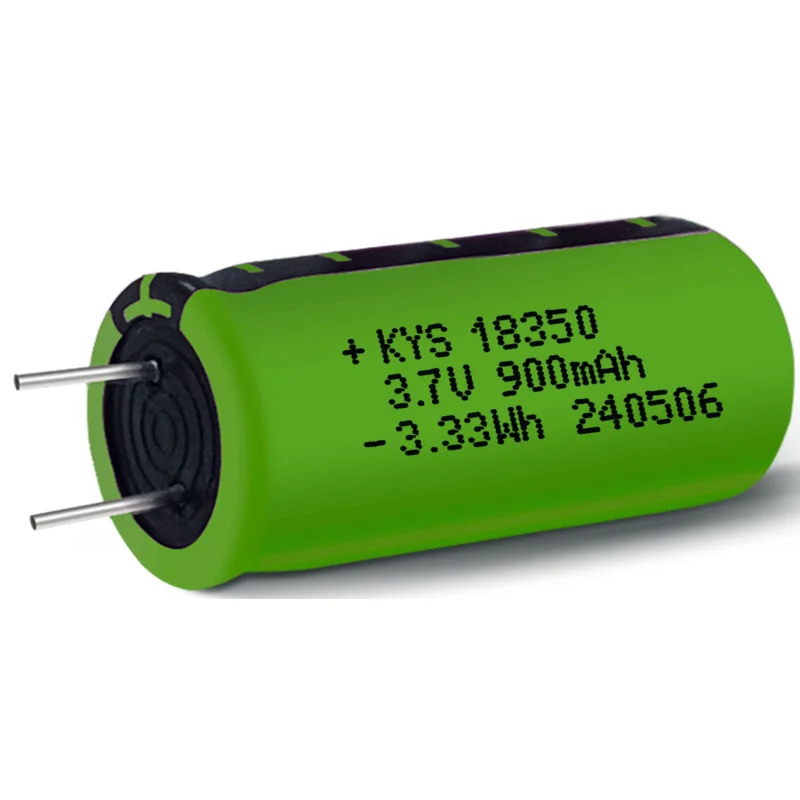

18350 3.7V 원통형 리튬 배터리

Cylindrical Lithium Battery Structural Configuration

Engineers manufacture the cylindrical lithium battery (18350, 3.7V class) using a compact electrochemical architecture designed around a tightly wound spiral core. First, they arrange cathode foil, separator membrane, and anode foil into a multilayer strip assembly. Then, they wind the layered structure into a dense cylindrical roll while continuously regulating tension and alignment accuracy. Meanwhile, technicians monitor edge positioning throughout the winding stage to reduce internal displacement and uneven compression. After forming the core, they install the assembly into a reinforced cylindrical enclosure and stabilize its geometry before electrolyte processing begins.

Material Composition and Electrochemical Layer Design

Manufacturers construct the cathode by coating lithium transition-metal compounds onto aluminum current collectors, while they fabricate the anode using graphite-based carbon slurry applied onto copper foil substrates. In addition, they introduce a microporous polyolefin separator to support ionic transport and maintain electrical isolation between electrodes. Furthermore, they prepare the electrolyte with lithium salts dissolved in organic carbonate solvents, and they strictly regulate impurity and moisture levels during formulation. Meanwhile, the cylindrical housing uses steel or aluminum alloy materials to maintain dimensional stability and mechanical durability under sealed conditions.

Electrode Production and Core Assembly Process

Technicians begin by dispersing active powders, conductive additives, and polymer binders into a stable slurry mixture. Subsequently, they coat the slurry onto metallic foils using automated precision coating systems. After coating, they dry the electrodes through staged thermal treatment to eliminate residual solvents and stabilize material adhesion. Next, calendaring equipment compresses the electrode surfaces to achieve controlled density and thickness uniformity. Then, they slit the processed materials into narrow strips and transfer them into automated winding machines to create a tightly packed jelly-roll structure. Meanwhile, operators secure current tabs using ultrasonic or resistance welding methods to ensure stable electrical pathways.

Formation Cycling and Industrial Standards

Engineers execute controlled formation cycling to activate electrochemical interfaces and stabilize internal reaction layers within the cell. Subsequently, they conduct thermal aging procedures under monitored environmental conditions to evaluate impedance stability and voltage consistency. Finally, quality control teams perform dimensional inspection, insulation resistance analysis, and sealing verification before shipment approval. Throughout manufacturing, producers comply with IEC 62133 and UN38.3 standards, ensuring cylindrical lithium battery production satisfies international transport safety, structural reliability, and electrical consistency requirements.

제품 특징

1. 🛠️ 커스터마이징 가능
   고객 요구에 맞게 맞춤화 가능하다
2. ⚡ 하이파워
   최대 20C 방전 가능 가능
3. ⏱️ 긴 주기 수명
   장기적인 제품 사용 요구를 충족합니다
4. 🛡️ 높은 안전성
   종합 안전 시험 통과
5. 🔋 진정격 용량
   제품 설계 역량에 부합합니다
6. ⚛️ 다중 화학 옵션
   LCO, NCM, NCA 및 LFP 시스템을 다룹니다
7. 🧰 다중 보호 메커니즘
   과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드

제품 적용 분야

이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:

• 개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기

• 스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명

• 재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
