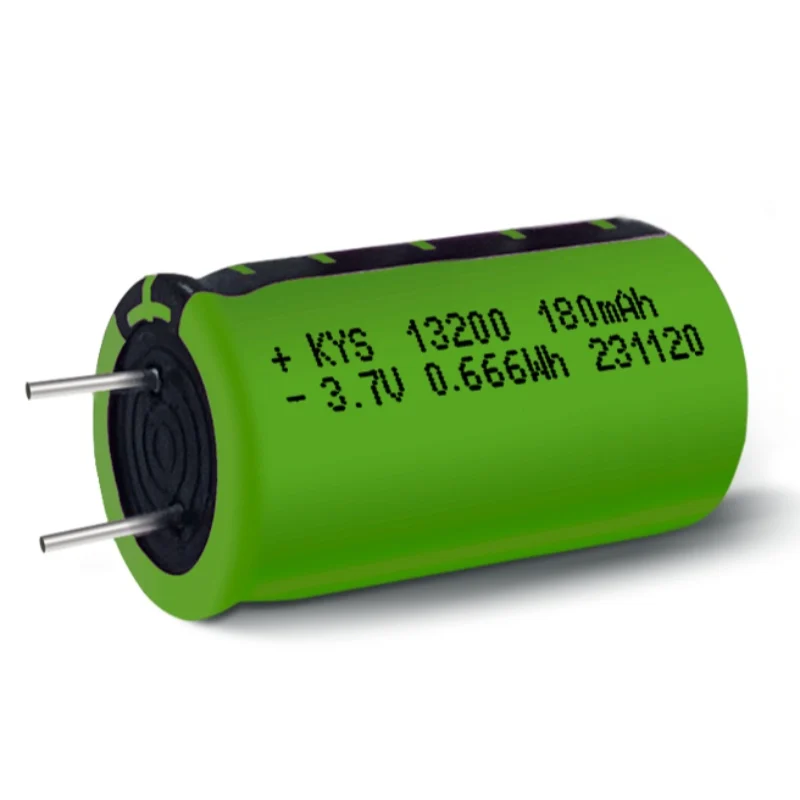

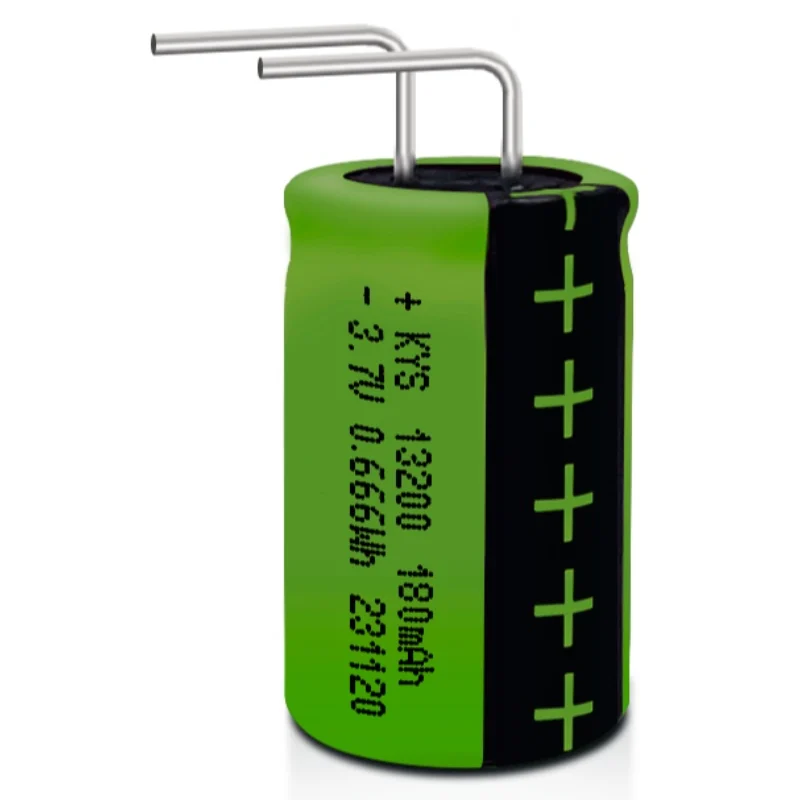

13200 3.7V 충전식 리튬이온 배터리

Rechargeable Li-ion Battery Cell Structure Overview

Engineers design the rechargeable Li-ion battery described in the 13200 3.7V lithium capacitor-style format by integrating a compact electrode stack into a sealed cylindrical enclosure. First, they arrange cathode and anode foils with a microporous separator in between, and they wind the layered structure into a tightly controlled spiral core. Meanwhile, they insert the rolled assembly into a rigid metal housing, and they stabilize internal alignment before electrolyte processing begins. After that, technicians secure the internal structure to prevent displacement during subsequent sealing operations.

재료 시스템 및 전기화학 구성 요소

Manufacturers coat lithium metal oxide compounds onto aluminum foil to form the cathode layer, and they apply graphite-based slurry onto copper foil to construct the anode layer. In addition, they introduce a PE/PP multilayer separator to maintain ionic conduction while preventing direct electrode contact. Furthermore, they prepare an organic carbonate electrolyte containing lithium salts such as LiPF6, and they regulate moisture content to maintain chemical stability. Meanwhile, the cylindrical shell uses aluminum alloy or steel material to provide mechanical rigidity and pressure resistance.

Electrode Assembly and Winding Process

Technicians cut coated electrodes into precise strips, and they feed them into automated winding machines to form a uniform jelly-roll structure. Then, they control winding tension carefully to avoid deformation and internal stress accumulation. After that, they insert the rolled core into the cylindrical casing and connect electrode tabs to the terminal structure. Subsequently, they perform laser or resistance welding to secure electrical connections. Meanwhile, they verify positional accuracy to ensure uniform layering throughout the cell.

형성 사이클링 및 산업 표준 관리

Engineers initiate formation cycling to activate electrochemical reactions and stabilize the solid electrolyte interphase layer within the cell. Then, they conduct aging tests under controlled temperature environments to evaluate voltage stability and impedance behavior. Finally, quality teams perform dimensional inspection, internal resistance measurement, and sealing verification. Throughout production, they comply with IEC 62133 and UN38.3 standards, and they validate mechanical integrity, electrical consistency, and transport safety requirements for rechargeable Li-ion battery manufacturing.

제품 특징

1. 🛠️ 커스터마이징 가능
   고객 요구에 맞게 맞춤화 가능하다
2. ⚡ 하이파워
   최대 20C 방전 가능 가능
3. ⏱️ 긴 주기 수명
   장기적인 제품 사용 요구를 충족합니다
4. 🛡️ 높은 안전성
   종합 안전 시험 통과
5. 🔋 진정격 용량
   제품 설계 역량에 부합합니다
6. ⚛️ 다중 화학 옵션
   LCO, NCM, NCA 및 LFP 시스템을 다룹니다
7. 🧰 다중 보호 메커니즘
   과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드

제품 적용 분야

이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:

• 개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기

• 스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명

• 재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
