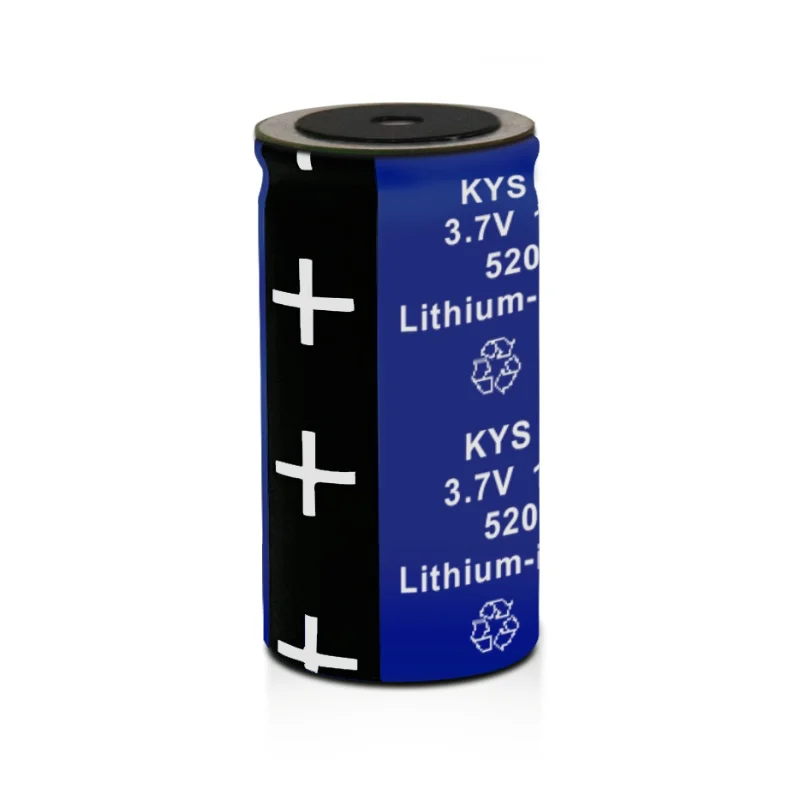

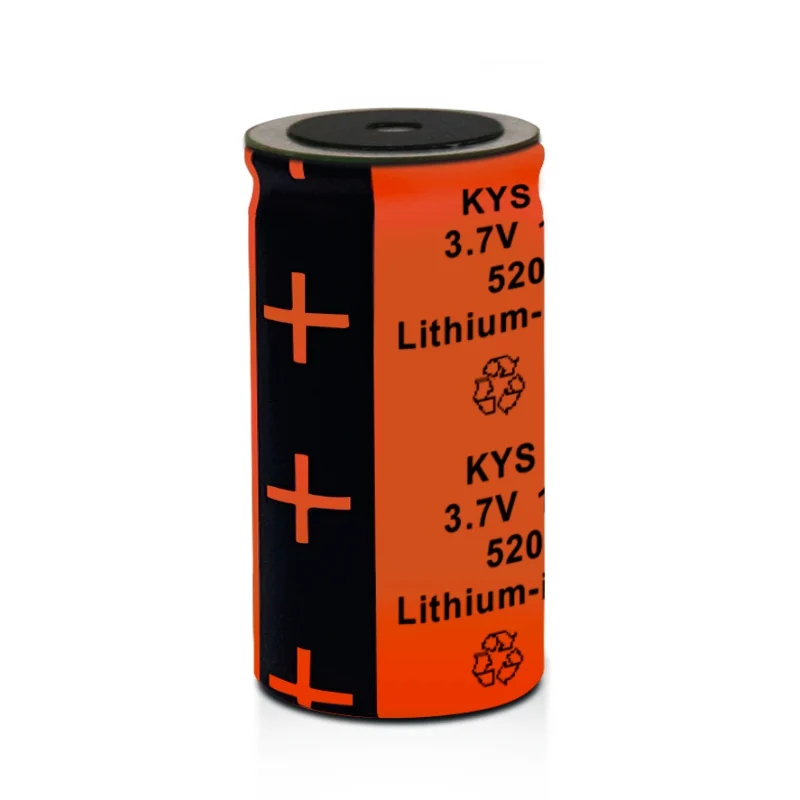

16300 3.7V 리튬 커패시터 배터리

Lithium Capacitor Battery Structural Overview

Engineers design the lithium capacitor battery (16300, 3.7V class) using a hybrid electrochemical architecture that integrates lithium-ion electrode chemistry with capacitor-type charge behavior. First, they arrange cathode foil, anode foil, and a microporous separator into a layered strip, and they wind the structure into a compact cylindrical core under controlled tension. Meanwhile, they maintain precise alignment throughout the winding stage to ensure uniform layer distribution. After that, technicians insert the rolled assembly into a rigid metal casing and stabilize its internal geometry before electrolyte injection begins.

재료 조성 및 전기화학 시스템

Manufacturers coat lithium metal oxide compounds onto aluminum foil to form the cathode layer, while they apply graphite-based slurry onto copper foil to construct the anode layer. In addition, they introduce a PP/PE multilayer separator that supports ion transport while preventing direct electrode contact. Furthermore, they prepare a lithium salt electrolyte dissolved in organic carbonate solvents, and they strictly control moisture levels to maintain chemical stability. Meanwhile, the cylindrical housing uses aluminum alloy or steel material to ensure mechanical rigidity and sealing reliability during processing.

Electrode Fabrication and Winding Process

Technicians begin slurry preparation by mixing active powders, conductive additives, and polymer binders into a homogeneous mixture. Then, they coat the slurry onto metallic foils using precision coating equipment and dry the electrodes under staged thermal conditions. Subsequently, they apply calendaring pressure to control electrode density and surface uniformity. After cutting the foils into narrow strips, they feed them into automated winding machines to form a tightly packed spiral core. At the same time, they weld electrode tabs using ultrasonic or resistance methods to ensure stable electrical connections.

Formation Cycling and Industrial Standard Control

Engineers initiate formation cycling to activate electrochemical reactions and stabilize interfacial layers within the cell. Then, they conduct aging tests under controlled temperature environments to evaluate voltage stability and impedance behavior. Finally, quality teams perform dimensional inspection, internal resistance measurement, and sealing verification. Throughout production, manufacturers follow IEC 62133 and UN38.3 standards, ensuring structural integrity, electrical consistency, and transport safety compliance for lithium capacitor battery manufacturing.

제품 특징

1. 🛠️ 커스터마이징 가능
   고객 요구에 맞게 맞춤화 가능하다
2. ⚡ 하이파워
   최대 20C 방전 가능 가능
3. ⏱️ 긴 주기 수명
   장기적인 제품 사용 요구를 충족합니다
4. 🛡️ 높은 안전성
   종합 안전 시험 통과
5. 🔋 진정격 용량
   제품 설계 역량에 부합합니다
6. ⚛️ 다중 화학 옵션
   LCO, NCM, NCA 및 LFP 시스템을 다룹니다
7. 🧰 다중 보호 메커니즘
   과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드

제품 적용 분야

이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:

• 개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기

• 스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명

• 재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
