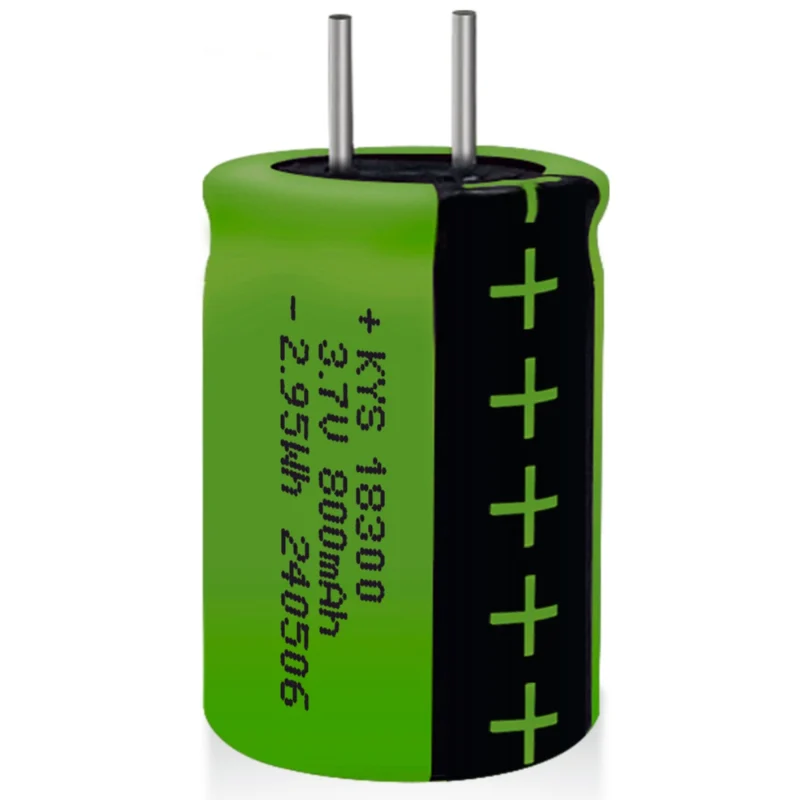

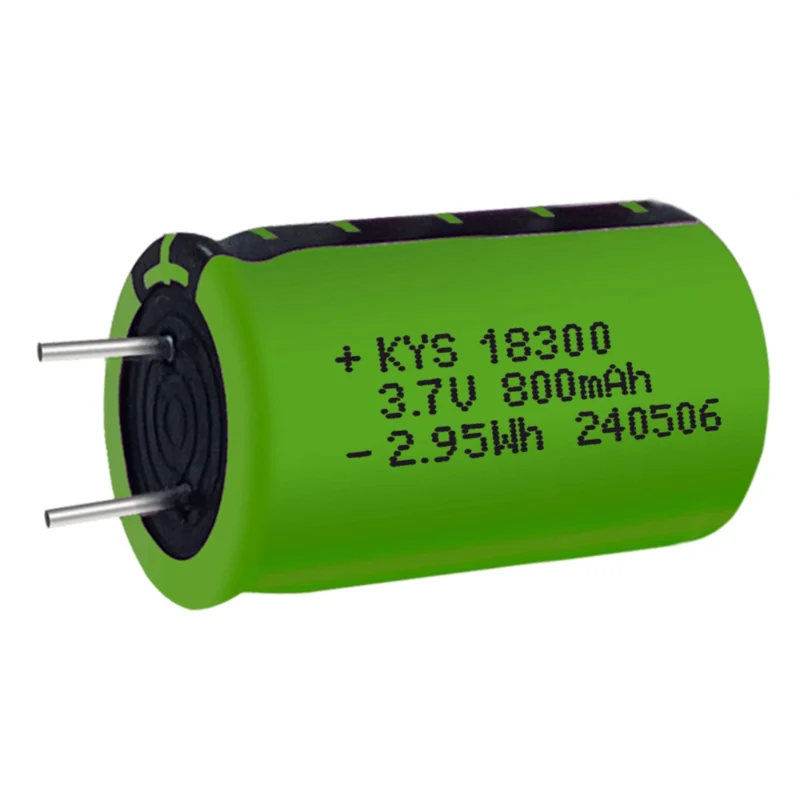

18300 3.7V 800mAh 리튬 커패시터 배터리

800mAh Lithium Capacitor Battery Structural Design

Engineers manufacture the 800mAh lithium capacitor battery using a compact cylindrical configuration that combines lithium-based electrochemical storage with capacitor-style structural characteristics. First, they laminate cathode foil, separator membrane, and anode foil into a multilayer strip arrangement. Then, they wind the assembled layers into a dense spiral core while carefully controlling alignment accuracy and winding pressure. Meanwhile, technicians monitor dimensional consistency throughout the process to reduce internal deviation and maintain balanced layer spacing. After core formation, they install the assembly into a precision cylindrical enclosure and secure the internal structure before electrolyte processing begins.

Material Composition and Layer Construction

Manufacturers produce the cathode by coating lithium transition-metal compounds onto aluminum current collectors, while they fabricate the anode using graphite-based carbon slurry deposited on copper foil. In addition, they introduce a microporous polyolefin separator to support ionic conduction and maintain electrical isolation between electrode layers. Furthermore, they formulate the electrolyte with lithium salt dissolved in organic carbonate solvents, and they strictly regulate moisture exposure during preparation and storage. Meanwhile, the cylindrical housing uses reinforced steel or aluminum alloy material to preserve structural rigidity under sealed operating conditions.

Electrode Fabrication and Core Assembly Process

Technicians begin by dispersing active powders, conductive additives, and polymer binders into a homogeneous slurry system. Subsequently, they coat the slurry onto metal foils through precision coating equipment and execute staged drying to remove residual solvents. Afterward, calendaring rollers compress the coated electrodes to achieve controlled density and uniform thickness. Next, they slit the electrode sheets into narrow strips and feed them into automated winding machines to create a compact jelly-roll structure. At the same time, operators connect current tabs through ultrasonic or resistance welding techniques to ensure stable electrical continuity.

Formation Cycling and Quality Verification Standards

Engineers perform controlled formation cycling to activate electrochemical interfaces and stabilize internal reaction layers within the cell. Afterwards, they conduct thermal aging procedures under monitored environmental conditions to evaluate impedance stability and voltage consistency. Finally, quality control teams complete insulation resistance testing, dimensional verification, and sealing inspection before shipment approval. Throughout manufacturing, producers comply with IEC 62133 and UN38.3 standards, ensuring the 800mAh lithium capacitor battery satisfies international safety, transport, and structural reliability requirements.

제품 특징

1. 🛠️ 커스터마이징 가능
   고객 요구에 맞게 맞춤화 가능하다
2. ⚡ 하이파워
   최대 20C 방전 가능 가능
3. ⏱️ 긴 주기 수명
   장기적인 제품 사용 요구를 충족합니다
4. 🛡️ 높은 안전성
   종합 안전 시험 통과
5. 🔋 진정격 용량
   제품 설계 역량에 부합합니다
6. ⚛️ 다중 화학 옵션
   LCO, NCM, NCA 및 LFP 시스템을 다룹니다
7. 🧰 다중 보호 메커니즘
   과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드

제품 적용 분야

이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:

• 개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기

• 스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명

• 재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
