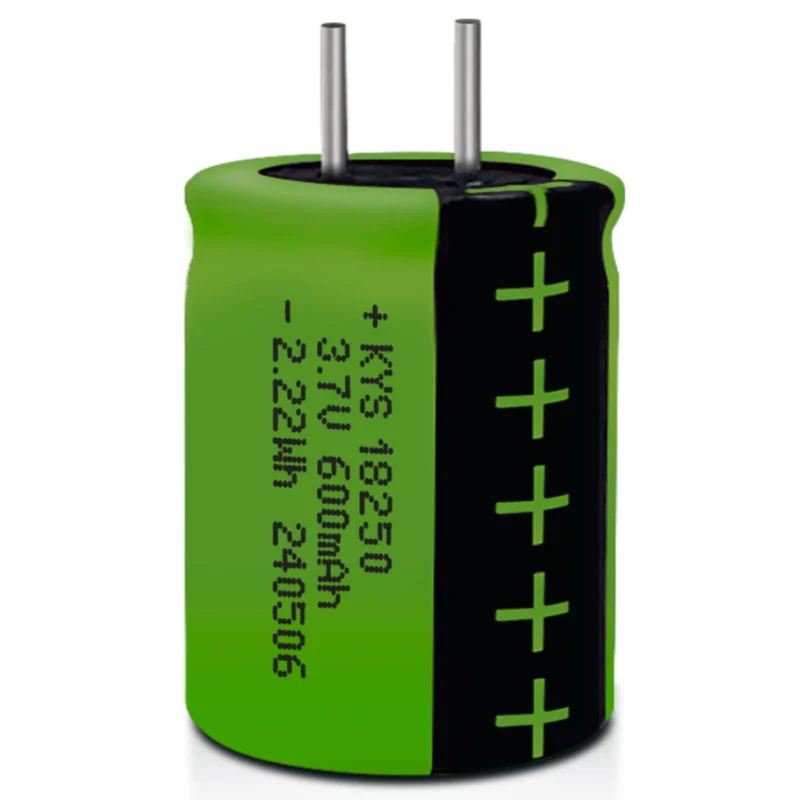

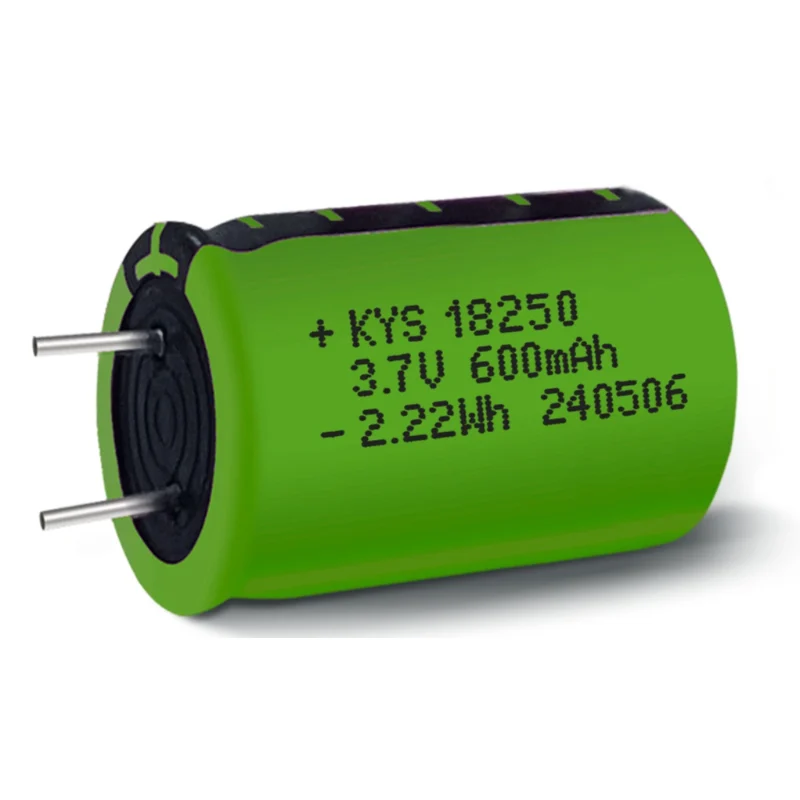

18250 3.7V 대형 슈퍼커패시터 셀

Large Supercapacitor Cells Structural Overview

Engineers construct large supercapacitor cells by organizing electrochemical double-layer structures inside a sealed cylindrical or prismatic enclosure. First, they stack activated carbon electrodes with a high-surface-area separator membrane, and they assemble the layers into a tightly compressed electrode roll or stacked block. Meanwhile, technicians maintain precise pressure control during assembly to ensure uniform pore distribution across the electrode interface. After that, they place the electrode assembly into a rigid metal housing and stabilize mechanical alignment before electrolyte filling begins.

Electrode Material System and Ionic Medium

Manufacturers prepare electrodes using porous activated carbon mixed with conductive carbon additives and polymer binders, and they coat this mixture onto aluminum current collectors. In addition, they introduce an organic electrolyte system containing quaternary ammonium salts dissolved in carbonate solvents, enabling rapid ionic movement across the porous network. Furthermore, they incorporate microporous separator films to prevent internal short circuits while maintaining ion diffusion pathways. Meanwhile, the enclosure uses aluminum or steel casing materials to preserve structural integrity under repeated charge-discharge stress cycles.

Cell Fabrication and Assembly Process

Technicians begin electrode production by dispersing carbon powder, conductive agents, and binder systems into a uniform slurry, and they apply this slurry onto metal foils using precision coating lines. Then, they dry the coated electrodes under controlled thermal conditions to remove residual solvents. After that, they compress the electrode layers through calendaring to optimize density and surface uniformity. Subsequently, they cut and assemble the electrodes into cylindrical or stacked configurations and wind or press them into a compact core structure. Meanwhile, they install current collectors and terminal interfaces using resistance welding or mechanical compression bonding.

Formation Testing and Industrial Standards Compliance

Engineers conduct initial charge conditioning cycles to stabilize electrode-electrolyte interfaces and ensure uniform charge distribution across the cell. Then, they perform long-duration cycling tests to evaluate capacitance retention and internal resistance stability under controlled temperature conditions. Finally, quality teams execute dimensional inspection, electrical parameter validation, and sealing verification. Throughout production, manufacturers align with IEC energy storage safety guidelines and industrial reliability standards commonly applied to high-capacitance supercapacitor systems used in high-power electronic designs.

제품 특징

1. 🛠️ 커스터마이징 가능
   고객 요구에 맞게 맞춤화 가능하다
2. ⚡ 하이파워
   최대 20C 방전 가능 가능
3. ⏱️ 긴 주기 수명
   장기적인 제품 사용 요구를 충족합니다
4. 🛡️ 높은 안전성
   종합 안전 시험 통과
5. 🔋 진정격 용량
   제품 설계 역량에 부합합니다
6. ⚛️ 다중 화학 옵션
   LCO, NCM, NCA 및 LFP 시스템을 다룹니다
7. 🧰 다중 보호 메커니즘
   과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드

제품 적용 분야

이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:

• 개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기

• 스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명

• 재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
