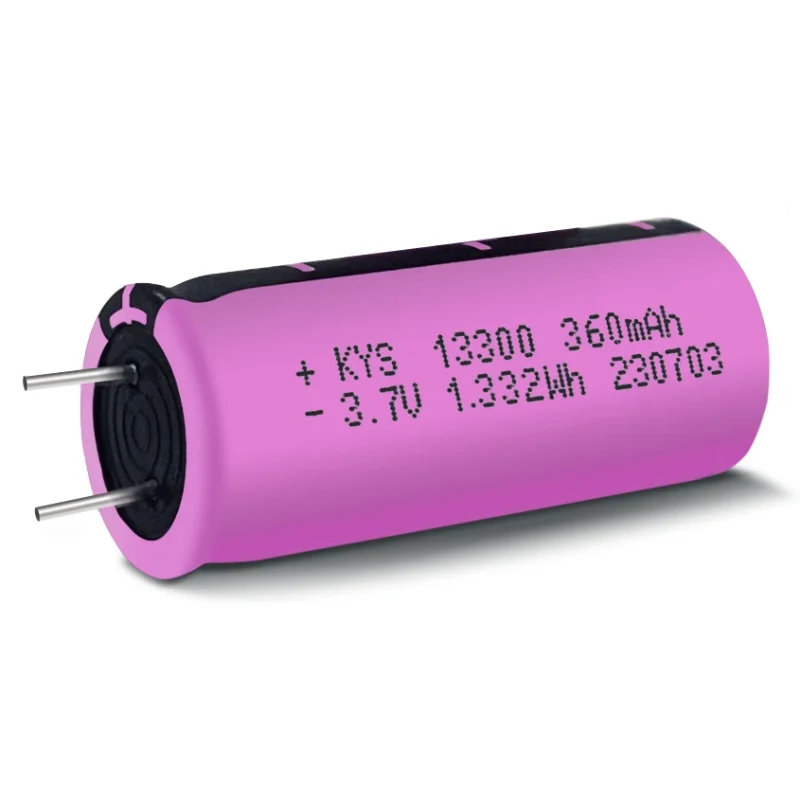

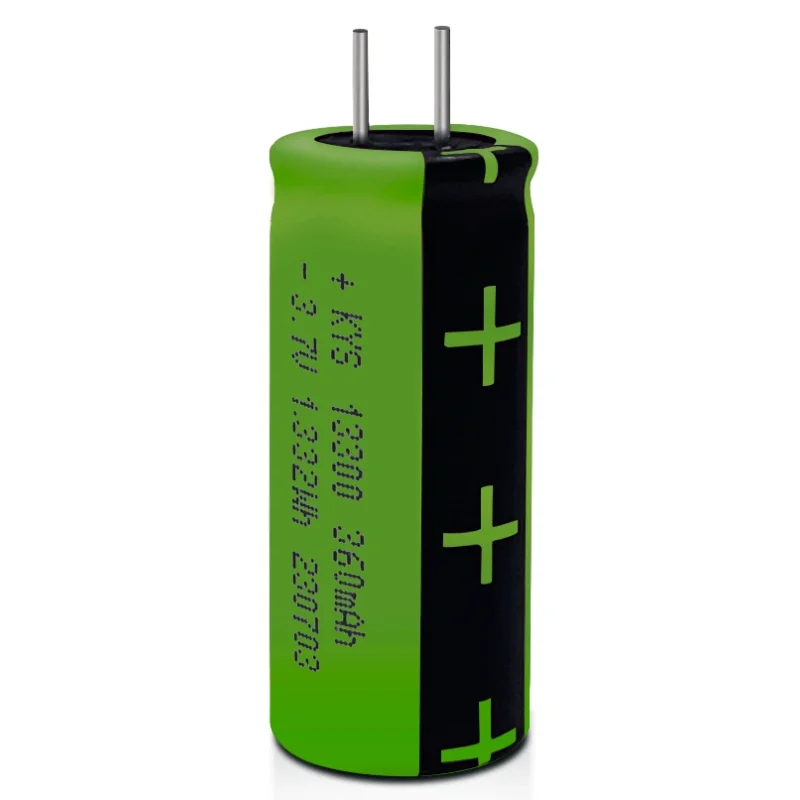

13300 3.7V Capacitor-Shaped Lithium Battery

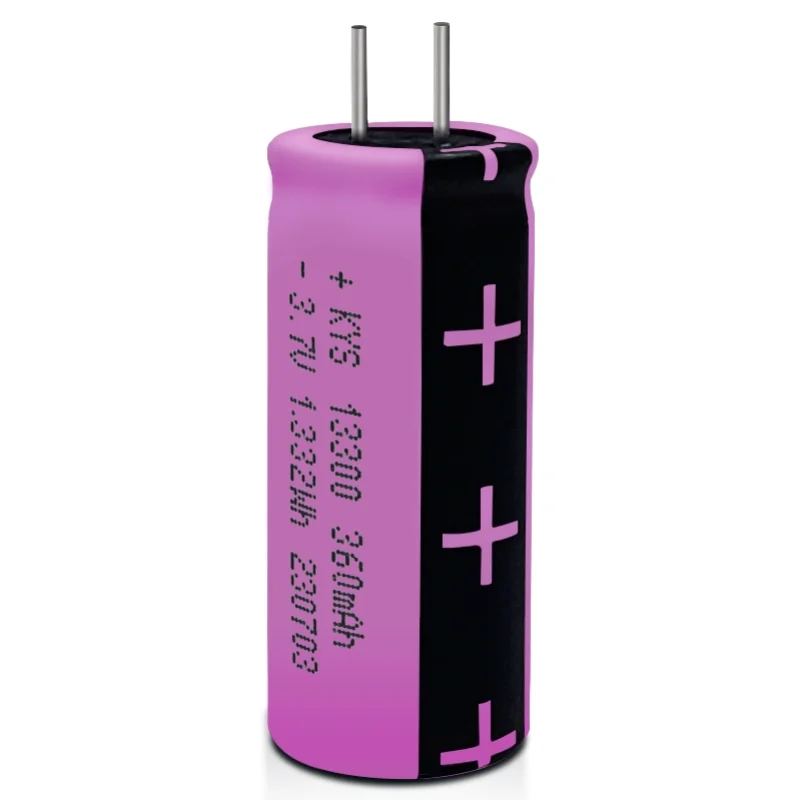

Capacitor-Shaped Lithium Battery Structure Overview

Engineers construct the capacitor-shaped lithium battery using a compact cylindrical architecture that resembles a hybrid form factor. First, they align electrode foils and separator layers into a tightly controlled spiral winding, and they roll the assembly into a dense core structure. Meanwhile, they insert the wound element into a rigid metal shell designed for sealed containment. After that, technicians stabilize internal geometry and prepare the unit for electrolyte infusion under controlled environmental conditions.

재료 조성 및 전기화학 시스템

Manufacturers coat lithium metal oxide compounds onto aluminum foil to form the cathode layer, and they apply graphite-based slurry onto copper foil to build the anode layer. In addition, they introduce a microporous PP/PE separator to maintain ionic pathways while preventing direct electrode contact. Furthermore, they prepare an organic carbonate electrolyte containing lithium salts such as LiPF6, and they control moisture levels to maintain chemical stability. Meanwhile, the outer casing uses aluminum alloy or steel material to provide structural rigidity and sealing reliability.

전극 권선 및 조립 공정

Technicians cut coated electrodes into precise strips, and they feed them into automated winding machines to form a uniform spiral core. Then, they regulate winding tension carefully to avoid deformation and internal stress accumulation. After that, they insert the rolled structure into the cylindrical housing and connect electrode tabs to terminal interfaces. Subsequently, they apply laser or resistance welding to secure electrical contact points. Meanwhile, they verify alignment accuracy to maintain consistent layer distribution.

편대 순환 및 표준 준수 시스템

Engineers initiate formation cycling to activate electrochemical reactions and stabilize the solid electrolyte interphase layer within the cell. Then, they conduct aging tests under regulated temperature environments to evaluate voltage stability and impedance behavior. Finally, quality teams perform dimensional inspection, internal resistance testing, and sealing verification. Throughout production, they comply with IEC 62133 and UN38.3 standards, ensuring structural integrity, electrical consistency, and transport safety compliance for capacitor-shaped lithium battery manufacturing.

제품 특징

1. 🛠️ 커스터마이징 가능
   고객 요구에 맞게 맞춤화 가능하다
2. ⚡ 하이파워
   최대 20C 방전 가능 가능
3. ⏱️ 긴 주기 수명
   장기적인 제품 사용 요구를 충족합니다
4. 🛡️ 높은 안전성
   종합 안전 시험 통과
5. 🔋 진정격 용량
   제품 설계 역량에 부합합니다
6. ⚛️ 다중 화학 옵션
   LCO, NCM, NCA 및 LFP 시스템을 다룹니다

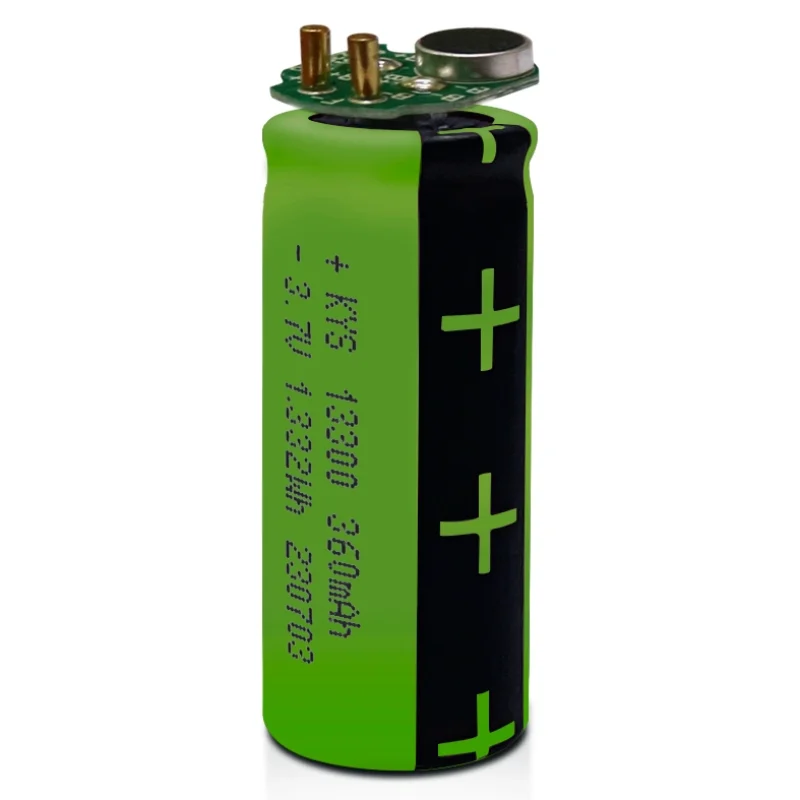

7. 🧰 다중 보호 메커니즘
   과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드

제품 적용 분야

이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:

• 개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기

• 스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명

• 재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
