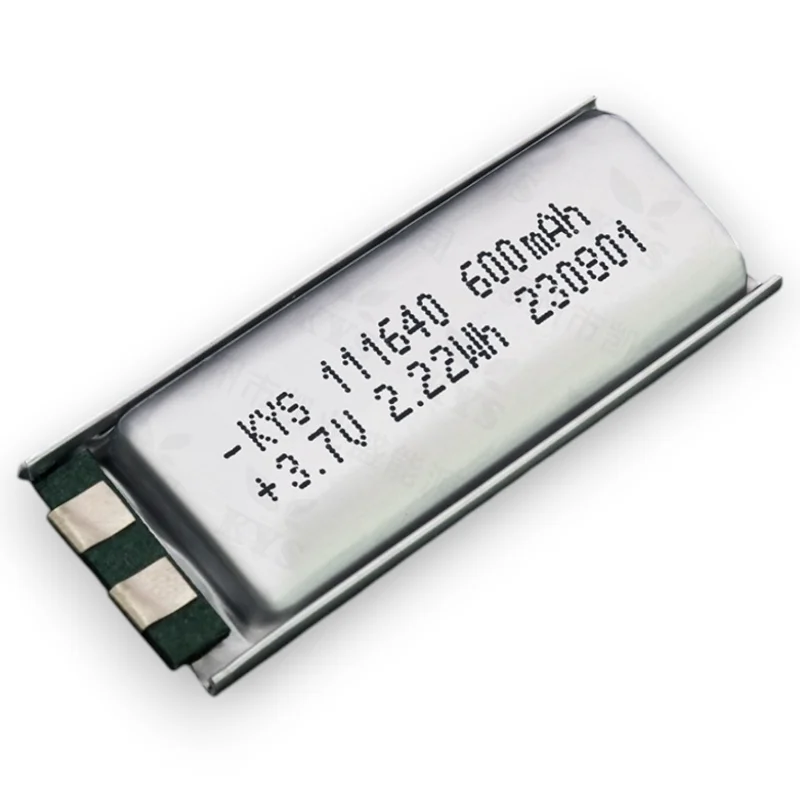

111640 OEM 리튬 폴리머 배터리

OEM Lithium Polymer Battery Structure Overview

Manufacturers build the OEM lithium polymer battery with tabs on the same side by arranging electrode layers inside a laminated pouch system. First, engineers align the cathode and anode foils in a parallel stacked structure, and they position both current collector tabs on the same edge to simplify external connection routing. Then, they insert a microporous separator between electrode layers to maintain ionic isolation while allowing lithium-ion transfer. After that, technicians fix the entire stack through precision alignment fixtures before transferring it to the next process stage.

Material System and Electrode Preparation

Producers coat lithium metal oxide active materials onto aluminum foil to form the cathode, and they apply graphite-based slurry onto copper foil to construct the anode. Meanwhile, they mix conductive carbon and polymer binders into a stable slurry system to ensure uniform dispersion. In addition, they dry the coated electrodes under controlled temperature conditions to remove residual solvents, and they perform calendering to improve density consistency and surface adhesion. Subsequently, they slit the electrodes into defined widths to match OEM dimensional requirements.

Tab Arrangement and Structural Integration

Technicians position both cathode and anode tabs on the same side of the cell, and they weld them using ultrasonic or resistance welding methods to ensure low-resistance electrical joints. Moreover, they reinforce the tab exit area with insulation layers to prevent short circuits during later sealing steps. After welding, operators route the combined tab structure through a single exit zone of the pouch, and they carefully maintain spacing to avoid mechanical stress on internal layers. Meanwhile, they verify alignment accuracy before sealing operations begin.

Formation Cycling and Quality Standard Control

Technicians initiate formation cycling to activate electrochemical interfaces and stabilize internal SEI layers under controlled charge-discharge profiles. Afterwards, they conduct aging tests to evaluate voltage consistency and internal impedance behavior over time. Finally, quality teams perform dimensional inspection, weld strength testing, insulation resistance measurement, and leakage detection in accordance with IEC 62133 and UN38.3 standards, ensuring each OEM lithium polymer battery meets strict manufacturing and transport safety requirements.

제품 특징

1. 🛠️ 커스터마이징 가능
   고객 요구에 맞게 맞춤화 가능하다
2. ⚡ 하이파워
   최대 20C 방전 가능 가능
3. ⏱️ 긴 주기 수명
   장기적인 제품 사용 요구를 충족합니다
4. 🛡️ 높은 안전성
   종합 안전 시험 통과
5. 🔋 진정격 용량
   제품 설계 역량에 부합합니다
6. ⚛️ 다중 화학 옵션
   LCO, NCM, NCA 및 LFP 시스템을 다룹니다
7. 🧰 다중 보호 메커니즘
   과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드

제품 적용 분야

이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:

• 개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기

• 스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명

• 재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
