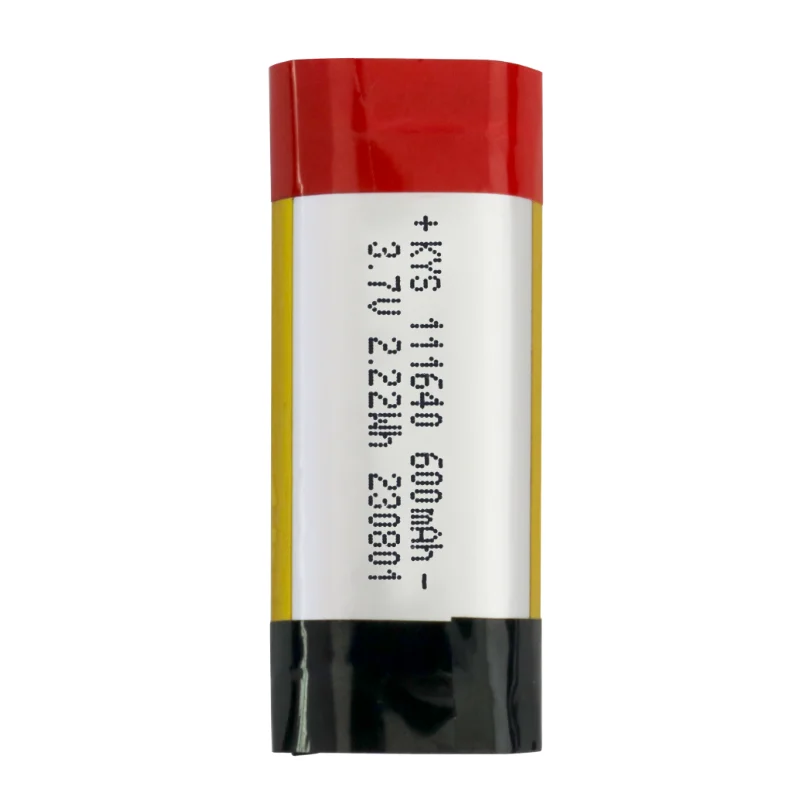

111640 리튬 폴리머 파우치 배터리

Lithium Polymer Pouch Battery Structure Description

Manufacturers construct the lithium polymer pouch battery with tabs on opposite ends by stacking electrode layers inside an aluminum-plastic pouch. First, they align cathode and anode sheets in a precise staggered layout, and they insert a microporous separator between them to maintain electrical isolation. Then, engineers extend current collector tabs toward opposite directions, and they fix the alignment during the stacking process. After that, workers place the completed electrode assembly into the pouch casing and adjust its position carefully before sealing preparation begins.

Material Composition and Layer Design

Producers coat lithium metal oxide materials onto aluminum foil to form the cathode layer, and they apply graphite-based slurry onto copper foil to create the anode layer. Meanwhile, they introduce a polyethylene and polypropylene multilayer separator to support ion transport while blocking internal contact. In addition, they select aluminum-plastic composite film as the outer enclosure material, and this structure combines barrier protection with mechanical flexibility. Next, technicians inject lithium salt electrolyte dissolved in organic carbonate solvents, and they ensure uniform penetration across all electrode surfaces.

Electrode Tab Configuration and Connection Method

Engineers position aluminum cathode tabs and copper or nickel-coated anode tabs at opposite ends of the cell. Then, they weld the tabs to the current collectors using ultrasonic or resistance welding equipment. At the same time, they reinforce the tab exit area with insulation materials to prevent edge shorting. After welding, operators route the tabs out of the pouch carefully, and they verify alignment to avoid stress on internal layers before sealing.

Standards and Manufacturing Control System

Quality teams follow IEC 62133 and UN38.3 standards throughout production. They inspect dimensions, test weld strength, and measure insulation resistance at multiple stages. In addition, they grade capacity and match internal resistance to maintain batch consistency. Finally, they run vibration, thermal shock, and high-temperature storage tests, and they verify that each cell meets required safety and manufacturing specifications.

제품 특징

1. 🛠️ 커스터마이징 가능
   고객 요구에 맞게 맞춤화 가능하다
2. ⚡ 하이파워
   최대 20C 방전 가능 가능
3. ⏱️ 긴 주기 수명
   장기적인 제품 사용 요구를 충족합니다
4. 🛡️ 높은 안전성
   종합 안전 시험 통과
5. 🔋 진정격 용량
   제품 설계 역량에 부합합니다
6. ⚛️ 다중 화학 옵션
   LCO, NCM, NCA 및 LFP 시스템을 다룹니다
7. 🧰 다중 보호 메커니즘
   과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드

제품 적용 분야

이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:

• 개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기

• 스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명

• 재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
