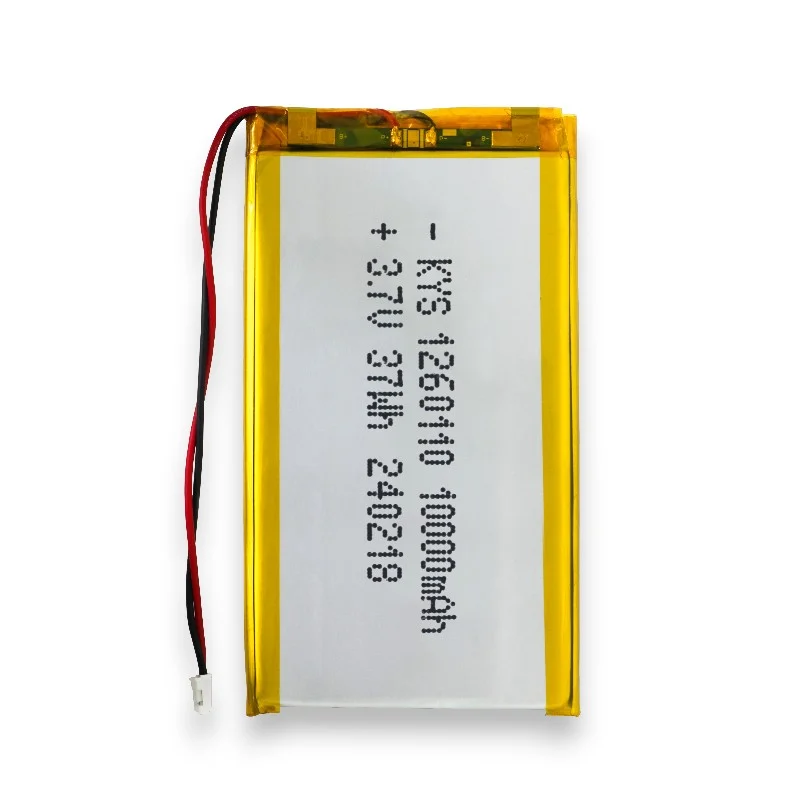

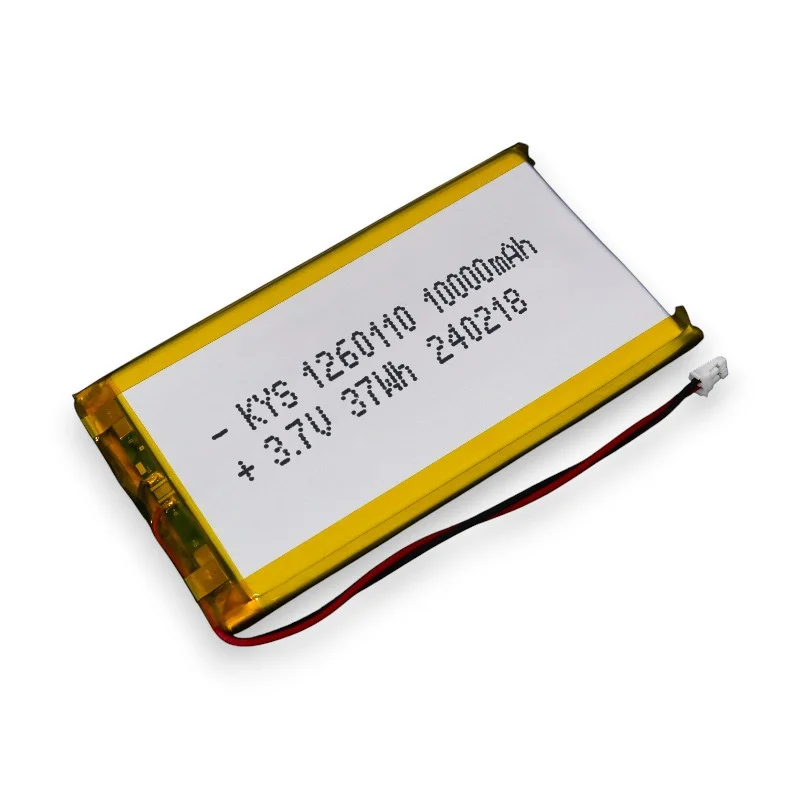

1260110 플랫 리포 배터리 팩

Flat LiPo Battery Pack Structure Overview

Engineers construct the flat LiPo battery pack using a laminated pouch architecture formed around a stacked electrode core. First, they align multiple layers of cathode, anode, and separator sheets into a flat geometric layout, and they fix the structure using precision positioning tools. Meanwhile, they route current collector tabs toward designated exit points, and they ensure uniform spacing before transferring the assembly into a sealed enclosure. After that, technicians place the prepared core into an aluminum-plastic composite pouch and stabilize its geometry prior to electrolyte processing.

재료 시스템 및 전극 조성

Manufacturers coat lithium metal oxide active materials onto aluminum foil to form the cathode layer, and they apply graphite-based slurry onto copper foil to construct the anode layer. In addition, they introduce a multilayer PP/PE separator film to maintain ionic pathways while blocking internal electrical contact. Furthermore, they prepare an organic carbonate electrolyte containing lithium hexafluorophosphate, and they control its purity to maintain consistent electrochemical behavior. Meanwhile, the pouch material combines polymer flexibility with aluminum barrier properties to reinforce structural containment.

Electrode Processing and Assembly Workflow

Technicians begin by mixing active powders, conductive agents, and binders into a uniform slurry, and they coat this mixture onto metallic foils using automated coating equipment. Subsequently, they dry the coated electrodes under controlled temperature zones to remove residual solvents. Then, they calender the electrode surfaces to regulate density and thickness uniformity. After that, they cut the electrodes into defined flat dimensions and stack them alternately with separators using alignment fixtures. Meanwhile, they weld tab connections through ultrasonic methods while maintaining low-resistance joints.

Formation Cycling and Compliance Standards

Engineers initiate controlled formation cycles to activate electrochemical interfaces and stabilize interphase layers within the cell. Then, they execute aging tests under regulated environmental conditions to observe voltage and impedance behavior. Finally, quality teams conduct dimensional checks, insulation resistance tests, and leakage verification. Throughout production, they follow IEC 62133 and UN38.3 standards, and they validate mechanical stability, electrical consistency, and transport safety compliance for flat LiPo battery pack manufacturing.

제품 특징

1. 🛠️ 유연한 커스터마이징
   고객 요구에 따라 와이어, 보호 PCB, 터미널 커넥터 및 기타 맞춤화 추가를 지원합니다
2. ⚡ 하이파워
   최대 20C 방전 가능 가능
3. ⏱️ 긴 주기 수명
   장기적인 제품 사용 요구를 충족합니다
4. 🛡️ 높은 안전성
   종합 안전 시험 통과
5. 🔋 진정격 용량
   제품 설계 역량에 부합합니다
6. ⚛️ 다중 화학 옵션
   LCO, NCM, NCA 및 LFP 시스템을 다룹니다
7. 🧰 다중 보호 메커니즘
   과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드

제품 적용 분야

이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:

• 개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기

• 스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명

• 재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
