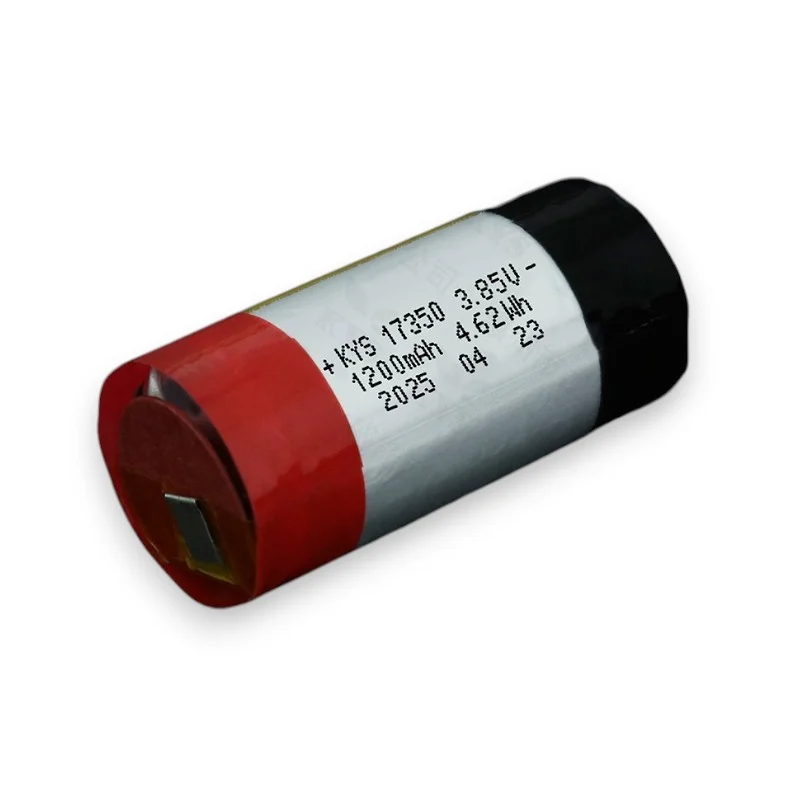

17350 3.85V 원통형 LiPo 배터리 1200mAh

Cylindrical LiPo Battery 1200mAh Structural Overview

Engineers develop the cylindrical LiPo battery 17350 (3.7V, 1200mAh class) using a compact spiral-wound electrochemical architecture. First, they align cathode-coated aluminum foil, graphite-coated copper foil, and polymer separator layers into a continuous laminated strip. Then, they wind the multilayer structure into a dense cylindrical jelly-roll core under tightly controlled tension. Meanwhile, technicians continuously regulate winding speed and edge alignment to prevent internal layer offset and mechanical stress accumulation. After forming the core, they insert it into a precision metal casing and stabilize its internal geometry before electrolyte injection begins.

Electrochemical Material System

Manufacturers prepare the cathode by coating lithium transition-metal oxide slurry onto aluminum foil current collectors. In parallel, they construct the anode using graphite-based carbon slurry applied onto copper foil substrates. Additionally, they introduce a PP/PE microporous separator to ensure ionic transport while maintaining electrical isolation between electrodes. Furthermore, they formulate an organic carbonate electrolyte containing lithium hexafluorophosphate (LiPF6), and they strictly control moisture content to prevent degradation reactions. Meanwhile, the cylindrical housing uses high-strength steel or aluminum alloy materials to maintain structural integrity under sealed conditions.

Electrode Fabrication and Layer Processing

Technicians begin by dispersing active materials, conductive carbon, and polymer binders into a uniform slurry system. Subsequently, they apply the slurry onto metal foils using precision coating machines with controlled thickness parameters. After that, they dry the coated electrodes through staged thermal ovens to remove residual solvents. Next, calendaring rollers compress the electrode layers to achieve consistent density and surface smoothness. Then, they cut the processed foils into narrow strips and feed them into automated winding equipment to form a tightly packed spiral structure. At the same time, they weld electrode tabs using ultrasonic or resistance techniques to ensure stable current pathways.

형성 사이클링 및 품질 기준 관리

Engineers initiate formation cycling to activate electrochemical interfaces and stabilize the solid electrolyte interphase layer within the cell. Then, they conduct aging tests under controlled temperature conditions to evaluate voltage consistency and impedance behavior. Finally, quality teams perform dimensional inspection, internal resistance measurement, and sealing verification. Throughout manufacturing, compliance is maintained with IEC 62133 and UN38.3 standards, ensuring structural reliability, electrical stability, and transport safety conformity for cylindrical LiPo battery 1200mAh production.

제품 특징

1. 🛠️ 커스터마이징 가능
   고객 요구에 맞게 맞춤화 가능하다
2. ⚡ 하이파워
   최대 20C 방전 가능 가능
3. ⏱️ 긴 주기 수명
   장기적인 제품 사용 요구를 충족합니다
4. 🛡️ 높은 안전성
   종합 안전 시험 통과
5. 🔋 진정격 용량
   제품 설계 역량에 부합합니다
6. ⚛️ 다중 화학 옵션
   LCO, NCM, NCA 및 LFP 시스템을 다룹니다
7. 🧰 다중 보호 메커니즘
   과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드

제품 적용 분야

이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:

• 개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기

• 스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명

• 재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
