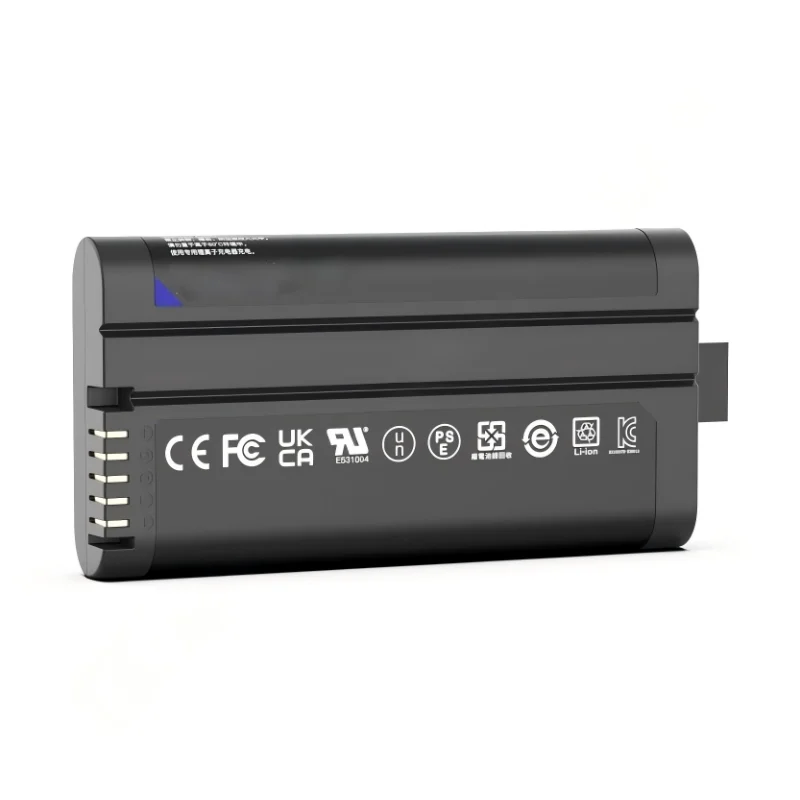

KYS2054HH 스마트 배터리 14.4V 리튬 배터리

The Smart Battery 14.4v Lithium Battery combines four lithium-ion cell groups inside a compact electrical enclosure. Engineers arrange the cells in a controlled sequence to maintain the required voltage level. An internal electronic board collects operating information from each cell channel. Meanwhile, communication terminals transfer measurement signals to connected equipment. Protective switching components interrupt current flow whenever irregular electrical conditions appear.

Cell Materials and Internal Composition

Manufacturers produce the cell structure using lithium-based cathode compounds and graphite anode materials. Aluminum foil supports positive current transmission, while copper foil handles negative electron collection. A separator membrane sits between electrode layers and prevents direct contact during operation. In addition, technicians install insulation sheets around conductive sections to reduce leakage risk. The external shell uses reinforced polymer and metal supports to maintain alignment during movement and vibration.

Assembly Procedure and Electrical Routing

Operators connect the lithium cells through nickel tab welding and form a four-series electrical arrangement. After cell grouping, technicians attach balance wires and sensing leads to each connection point. The integrated circuit board samples voltage and temperature values continuously. Furthermore, MOSFET switching devices regulate charging and discharging pathways according to preset thresholds. Cable anchors stabilize internal wiring and reduce stress on terminal joints during repeated handling.

Heat Distribution and Structural Arrangement

Thermal energy moves through spacing channels placed between adjacent cell rows. Conductive interface pads help distribute heat across the enclosure surface. Instead of using rotating cooling components, the structure relies on internal spacing and material conductivity for temperature control. The outer housing absorbs compression forces and protects the internal assembly from external impact. Access openings allow technicians to inspect terminal areas without removing the full enclosure.

Standards and Manufacturing Verification

Production follows IEC 62133 and UN38.3 requirements for lithium battery assemblies. Engineers perform insulation testing, voltage retention checks, and repeated charge-discharge evaluations on each batch. Serial identification codes support traceability during manufacturing and transport procedures. Packaging inspections confirm terminal isolation before shipment release.

제품 특징

• 4S2P removable lithium-ion battery pack
• 전 세계 여러 지역의 규정을 준수합니다.
• 표준 SMBus v1.1 인터페이스
• 통합 LED 충전 상태(SOC) 표시기
• 파나소닉 셀을 사용하며, 시장에서 가장 높은 에너지 밀도와 안정성을 자랑합니다
• JEITA 충전 최적화 규칙을 충족함
• 과충전, 과방전, 과전류, 과열, 단락 방지 등 종합적인 안전 보호 기능을 갖추고 있습니다
• 배터리 수명을 효과적으로 개선하는 밸런싱 기능 탑재
• TI precise power calculation

제품 적용 분야

• 클래스 III 의료기기
• 정밀 측정 기기
• 산업용 컴퓨터
• 비파괴 시험 장비
• 휴대용 산업용 및 의료기기 등.
