홈 / 스마트 로봇용 맞춤형 48V 10Ah 15Ah 20Ah 30Ah 50Ah 리튬 배터리 팩 BMS를 탑재한 스마트 로봇
This custom 48V rechargeable lithium battery pack is designed for smart robots, AGV systems, service robots, and inspection equipment. Built with 18650 or 21700 cells, it offers 10Ah to 50Ah capacity options and stable power output. The integrated BMS helps protect against overcharge, over-discharge, overcurrent, short circuit, and overheating during operation.
- 모델: 21700-13S(2-10)P
- 세포 크기: 21×70 mm
- 용량: 5000mAh
- Nominal Voltage: 48 V
- Cell Resistance: 500mΩ
- Charge Voltage: 54.6 V
- 적용: 로봇
무료 견적 받기
제품 목록으로 돌아가기
개요

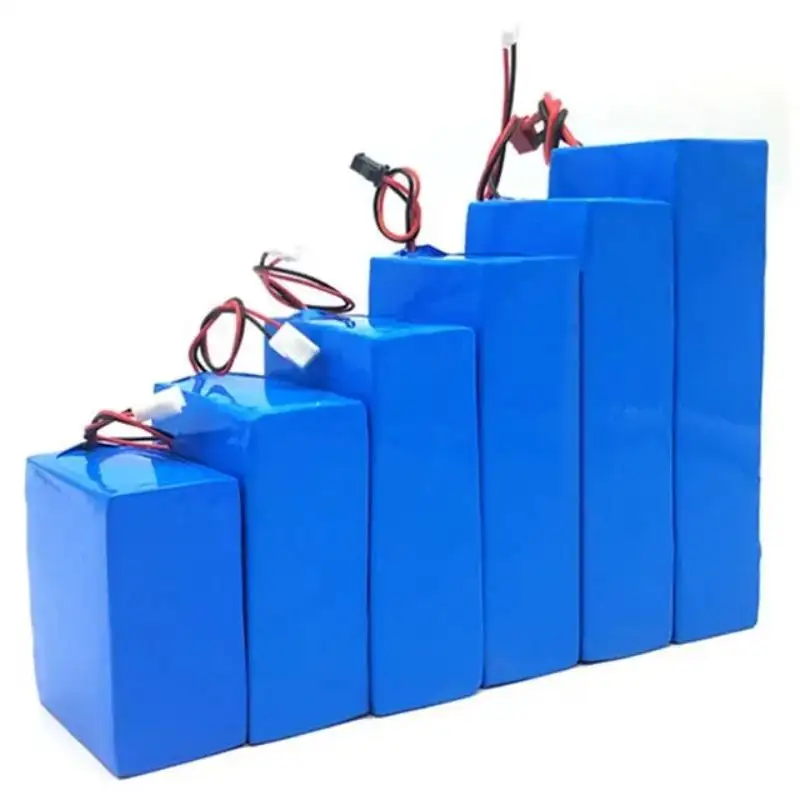

This factory custom 48V rechargeable lithium battery pack is designed for smart robots, AGV systems, service robots, inspection robots, and other intelligent mobile equipment. Built with 18650 or 21700 Li-ion cells, it supports flexible capacity options, including 10Ah, 15Ah, 20Ah, 30Ah, and 50Ah, to meet different runtime and power requirements. The battery pack can be customized according to size, discharge current, connector type, communication function, cable length, housing structure, and installation method. With an integrated BMS protection system, it helps prevent overcharge, over-discharge, overcurrent, short circuit, and overheating during charging and operation. The stable 48V output supports reliable robot movement, control systems, sensors, and onboard electronics. This custom smart robot battery pack is suitable for OEM/ODM projects that require safe performance, long service life, and dependable energy storage.
제품 세부사항
- Custom 48V Design: Supports flexible 48V lithium battery pack customization for smart robots, AGV systems, service robots, and mobile robotic equipment.
- 18650 / 21700 Cell Options: Built with reliable Li-ion cells to provide stable output, efficient charging, and dependable energy storage.
- 다중 수용 능력 선택: Available in 10Ah, 15Ah, 20Ah, 30Ah, and 50Ah options to meet different runtime and power requirements.
- 통합 BMS 보호: Built-in BMS helps protect the battery from overcharge, over-discharge, overcurrent, short circuit, and overheating.

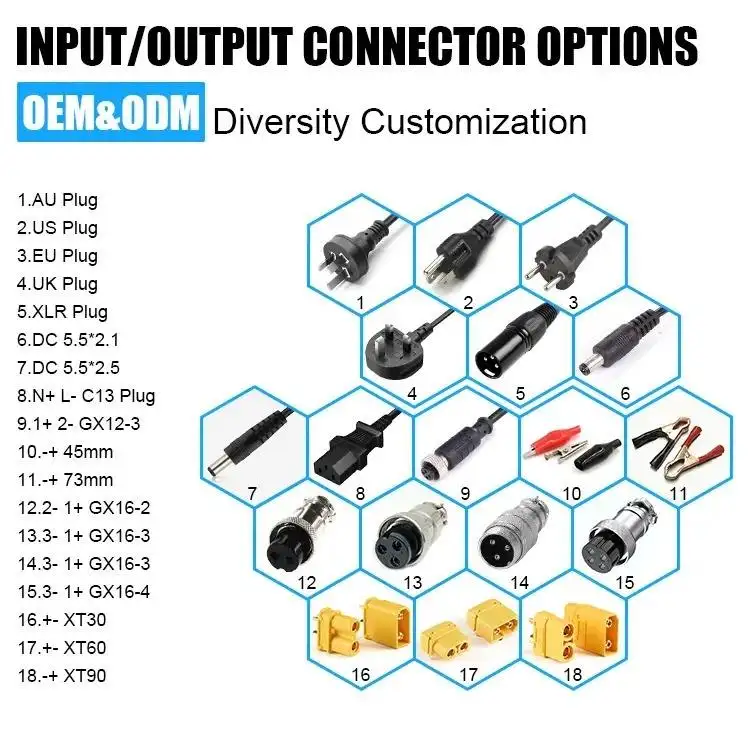

- Flexible OEM/ODM Support: Battery size, connector, cable length, discharge current, housing structure, and communication function can be customized.
응용 분야
- Smart Robots: Suitable for intelligent robots that require stable 48V rechargeable lithium battery power.
- AGV and AMR Systems: Provides reliable energy for automated guided vehicles, autonomous mobile robots, and warehouse logistics equipment.
- 서비스 로봇: Supports cleaning robots, delivery robots, reception robots, and commercial robotic devices.
- 검사 로봇: Ideal for security patrol robots, industrial inspection robots, and outdoor monitoring equipment.
- Industrial Automation: Designed for robotic platforms, mobile workstations, and customized automation systems requiring long runtime.
기술 매개변수
| 모델 | 21700-13S（2-10）P |
| 셀 크기 | 21×70mm |
| 수용 인원 | 5000mAh |
| 명목 전압 | 48V |
| 세포 저항성 | 500 mΩ |
| 처리 방법 | 요청에 따라 맞춤 설정됨 |
| C하지 전압 | 54.6V |
| 적용 |
로봇 |
