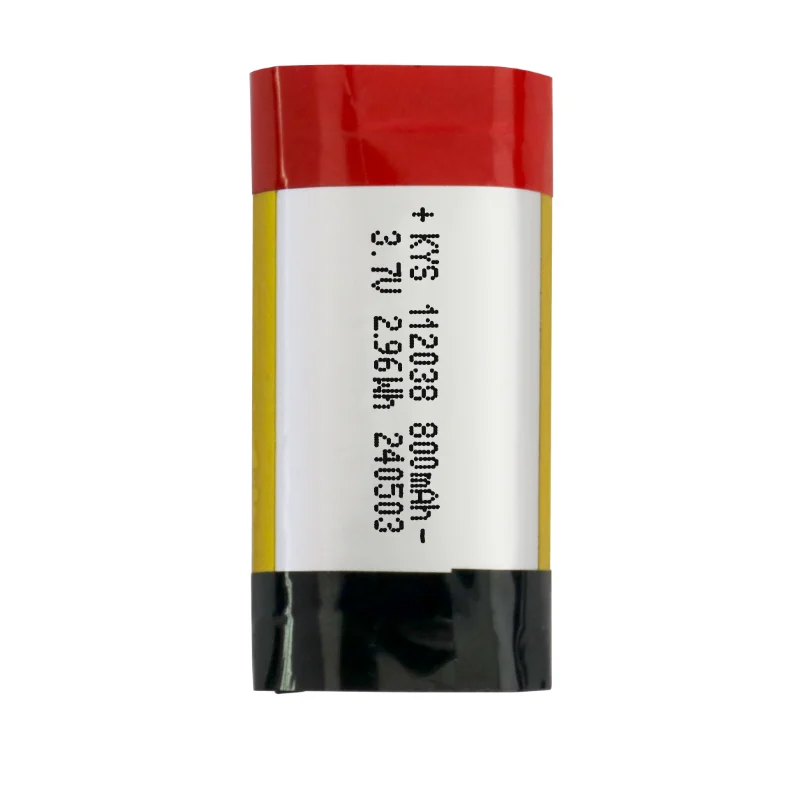

112038 충전식 리포 배터리 3.7V

Rechargeable LiPo Battery 3.7V Structure Overview

Manufacturers construct the rechargeable LiPo battery 3.7V using a laminated pouch architecture that combines stacked electrodes and flexible sealing materials. First, engineers align cathode and anode foils into a controlled stack structure, and they insert a microporous separator between each layer to maintain ionic isolation. Meanwhile, they position current collector tabs with precision to ensure stable electrical routing. After that, they transfer the assembled core into an aluminum-plastic composite pouch, and they adjust internal alignment before sealing preparation begins.

Material System and Electrode Composition

Producers apply lithium metal oxide materials onto aluminum foil to form the cathode layer, and they coat graphite-based slurry onto copper foil to create the anode structure. In addition, they mix conductive additives and polymer binders into the slurry to maintain uniform dispersion during coating. Subsequently, they dry the coated electrodes under controlled thermal conditions to remove residual solvents, and they perform calendering to stabilize thickness and surface density. Moreover, they select multilayer PP/PE separator films to support ionic transfer while preventing internal short circuits.

Electrode Fabrication and Assembly Process

Technicians begin electrode processing by cutting coated foils into defined dimensions, and they carefully control edge quality to avoid burr formation. Then, they stack electrodes and separators in alternating order, and they maintain strict alignment using automated fixtures. After that, they weld aluminum and copper tabs using ultrasonic or resistance welding methods, and they reinforce tab junctions with insulation layers. Meanwhile, they route the tab structure outward from the pouch edge while preserving internal spacing integrity.

Formation, Testing, and Standard Compliance

Engineers initiate formation cycling to activate electrochemical interfaces and stabilize SEI layers under controlled charge-discharge profiles. Subsequently, they conduct aging tests to evaluate voltage behavior and impedance stability over time. Finally, quality teams execute dimensional inspection, insulation resistance measurement, weld strength verification, and leakage detection. Throughout production, they comply with IEC 62133 and UN38.3 standards, and they ensure each rechargeable LiPo battery 3.7V meets strict manufacturing consistency and transport safety requirements.

제품 특징

1. 🛠️ 커스터마이징 가능
   고객 요구에 맞게 맞춤화 가능하다
2. ⚡ 하이파워
   최대 20C 방전 가능 가능
3. ⏱️ 긴 주기 수명
   장기적인 제품 사용 요구를 충족합니다
4. 🛡️ 높은 안전성
   종합 안전 시험 통과
5. 🔋 진정격 용량
   제품 설계 역량에 부합합니다
6. ⚛️ 다중 화학 옵션
   LCO, NCM, NCA 및 LFP 시스템을 다룹니다
7. 🧰 다중 보호 메커니즘
   과충전, 과방전, 과전류 및 단락 방지 기능이 포함된 내장 보호 보드

제품 적용 분야

이 제품은 다양한 휴대용 및 전원형 전자 장치에 적합하며, 일반적인 응용 분야는 다음과 같습니다:

• 개인 관리 및 건강: 전동 칫솔, 미용 기기, 피트니스 트래커, 의료기기

• 스마트 디지털 및 오디오: 헤드폰, 스피커, 네뷸라이저, 장난감, 조명

• 재정 지급 및 사무실: POS 기계, USB 토큰, 휴대용 프린터
