32700 모듈형 배터리 설계

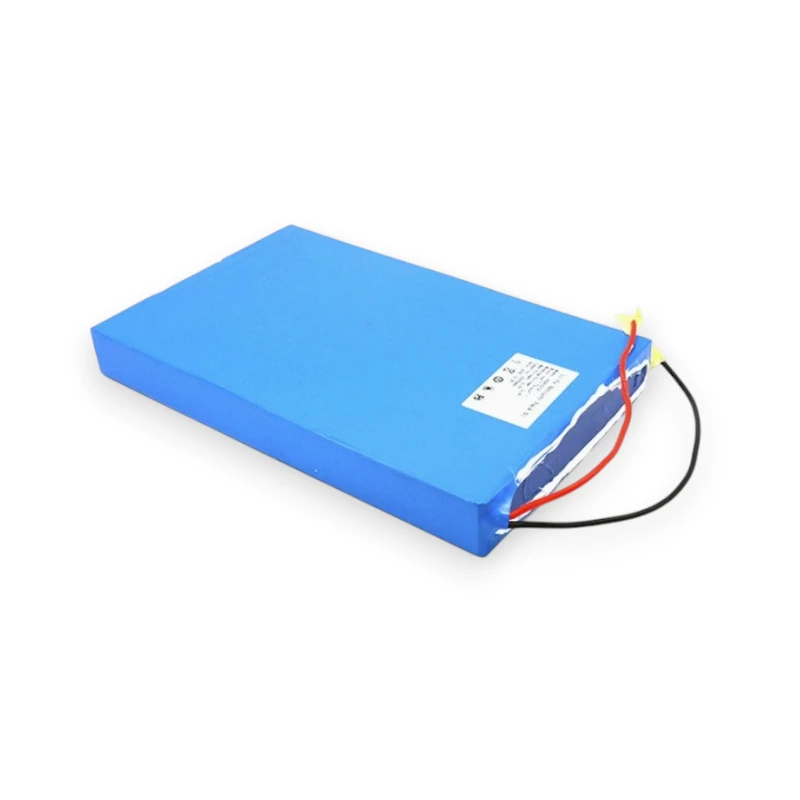

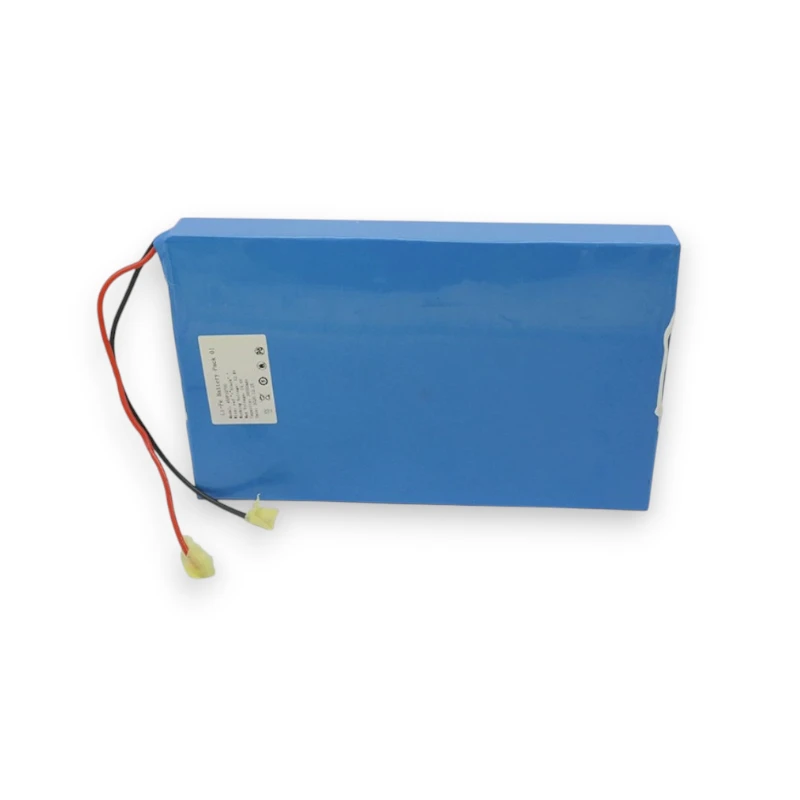

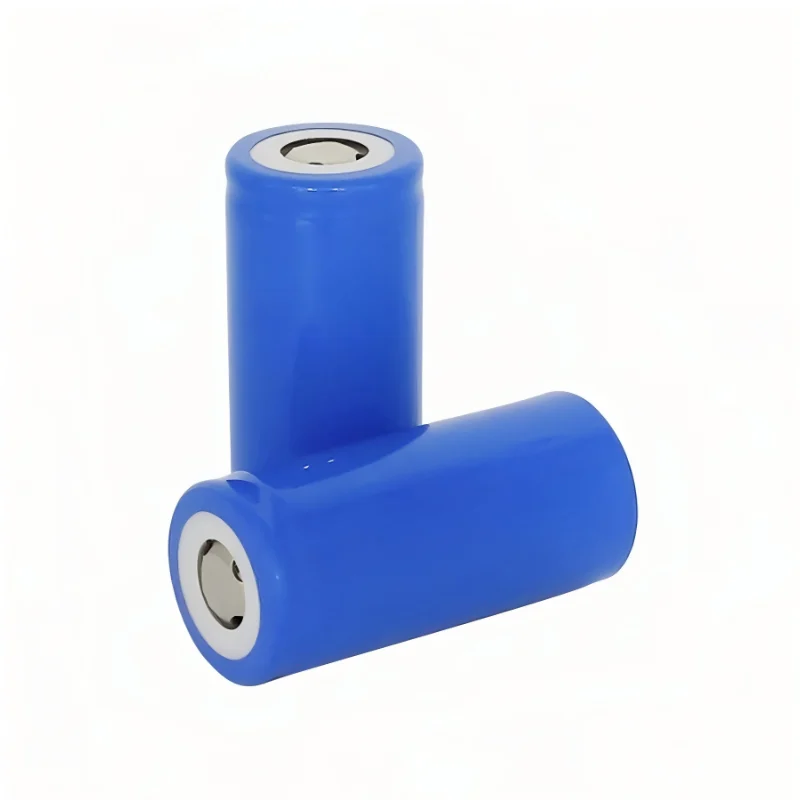

Our KYS 32700 series covers both single LiFePO4 cell and pre‑assembled 4S8P battery pack for flexible power use. The single 6500mAh 3.2V Grade‑A cell supports 5C high‑rate discharge with MSDS certification, great for DIY assembly. The 12.8V 52Ah 4S8P pack with BMS & wires is ready‑to‑use, certified by CB, CE, SGS, UN38.3, UL, perfect for energy storage and backup power supplies.

  • Product Brand: KYS
  • Product Model: 32700 4S8P with BMS & Wires
  • Product Capacity: 52 Ah
  • 명목 전압: 12.8V
  • Finished Size: 75*135*270 mm
  • Storage Temperature: 23±3℃
  • Operating Temperature: -10℃ ~ +50℃
리튬 배터리 셀은 원통형입니다
Industrial Power Cell Module
Cylindrical Energy Cell Unit
Round Lithium Cell Structure
리튬 배터리 셀은 원통형입니다
Industrial Power Cell Module
Cylindrical Energy Cell Unit
Round Lithium Cell Structure

개요

기술 매개변수

연락처

관련 제품

개요

The Gloflux Cylindrical Lithium Battery Cell is engineered to deliver stable energy output and long service life for modern electronic applications. It is designed to support modular battery design, allowing flexible configuration of energy systems across different voltage and capacity requirements. This structure helps developers build efficient and scalable battery packs with ease.

Modular Battery Design Flexibility

The modular battery design allows cells to be combined in different arrangements. As a result, system designers can adjust performance based on specific application needs. In addition, this flexibility reduces development complexity and improves integration efficiency. Therefore, it becomes easier to create customized battery packs for a wide range of devices.

Stable Cylindrical Cell Performance

The cylindrical lithium cell provides consistent discharge performance and high energy density. Moreover, it maintains stable output even under continuous load conditions. The robust structure also improves mechanical durability. Consequently, the cell performs well in both consumer and industrial environments where reliability is critical.

Safety and Quality Control

Each cell is built under strict quality standards to ensure safe operation. In addition, the internal chemistry is optimized to reduce performance degradation over time. When used in a modular battery design system, the cells work efficiently with battery management systems. Therefore, overall safety and stability are significantly improved.

Scalable Energy Integration

The cylindrical structure supports easy expansion of energy capacity. For example, additional cells can be added to increase voltage or runtime. At the same time, system balance remains stable when proper management is applied. This makes the product suitable for scalable energy projects in many industries.

Wide Application Scenarios

The battery cell fits well in portable electronics, medical devices, smart systems, and industrial tools. Furthermore, it supports long-term use in energy storage applications. Because of its modular battery design compatibility, it adapts easily to different engineering requirements. As a result, it provides a reliable foundation for flexible power system development.

기술 매개변수

항목 사양
Battery Brand 키스
Battery Model 32700
Battery Capacity 6500mAh
명목 전압 3.2V
배터리 무게 137g
Battery Internal Resistance 14-16mΩ
Cell Grade Brand-new Grade A
Discharge Rate 5C
Battery Length 70mm
Battery Diameter 32mm
Full-charged Voltage 4.2V
작동 온도 Charge (0-45℃), Discharge (-20-60℃)
증명 MSDS



항목 사양
Product Brand 키스
Product Model 32700 4S8P with BMS & Wires
Product Capacity 52Ah
명목 전압 12.8V
완성된 크기 75*135*270mm
저장 온도 23±3℃
작동 온도 -10℃ ~ +50℃
증명 CB, CE, SGS, UN38.3, UL
