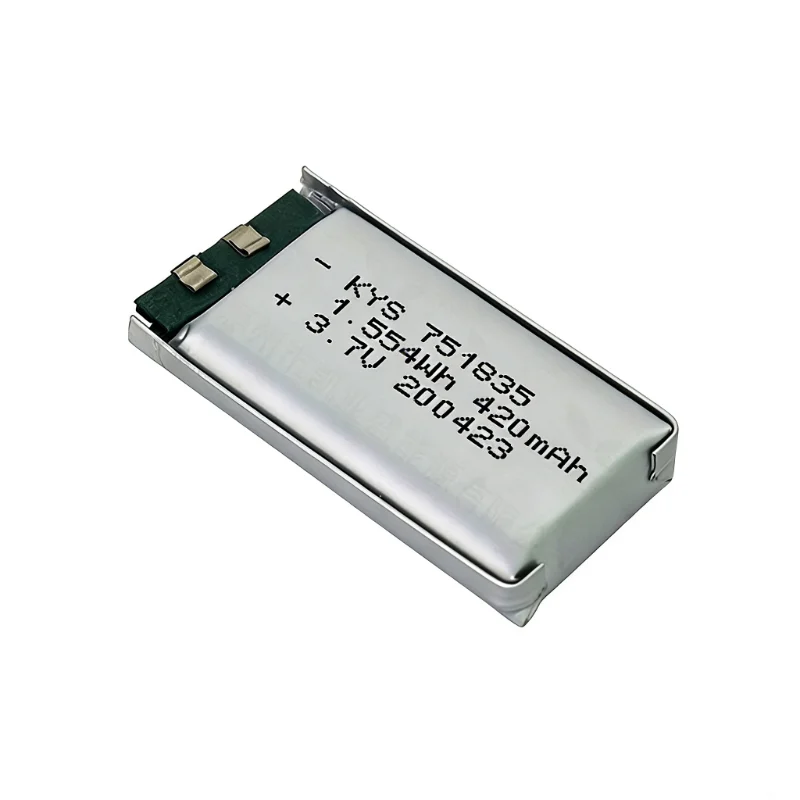

751835 고소모 LiPo 배터리 420mAh

A high drain LiPo battery 420mAh uses a single pouch-cell structure. Engineers set its nominal voltage at 3.7V and limit full charge to 4.2V. In addition, the design supports high current output while keeping internal resistance low. Manufacturers also control capacity through strict electrode matching and electrolyte dosing. This approach keeps electrical behavior stable during fast load changes.

Material Composition and Cell Structure

Producers build the cell with lithium cobalt or blended cathode materials. They pair these with graphite anodes to support fast ion movement. Copper and aluminum foils guide electron flow inside the cell. Meanwhile, a microporous separator prevents electrode contact and blocks internal short circuits. The outer pouch uses aluminum-plastic laminate. It keeps the internal chemistry sealed and stable under physical stress.

조립 및 전기 구성

Technicians sort cells by impedance and voltage before assembly. This step reduces imbalance in the final battery pack. Next, they use spot welding to attach nickel tabs. The process forms a low-resistance electrical path. It also limits heat impact on the electrodes. After that, a protection circuit module is installed. It controls overcharge, over-discharge, and over-current conditions. In addition, lead wires receive strain relief to prevent connection failure during movement.

밀봉 및 구조 마감

Workers seal the pouch cell using heat-lamination. This step locks in electrolyte and blocks moisture entry. Then, they apply insulation layers to strengthen the outer structure. These layers also help maintain shape stability. After sealing, technicians run pressure and insulation tests. They check for leaks and electrical safety before final packaging.

표준 및 전기 제어

Manufacturing follows UN38.3, CE, and RoHS requirements. These standards guide transport and material safety. Charging uses a constant-current/constant-voltage method. The system limits voltage to 4.2V per cell. Finally, cycle tests run under controlled temperature conditions. These tests confirm stable discharge behavior during repeated use.

제품 특징

• 맞춤화 지원: 고객의 요구에 맞춰 맞춤화 가능
• 고출력: 최대 20도까지 방전
• 고속 충전: 최대 3C 충전
• 장기 수명: 장기 제품 사용 요건을 충족함
• 다중 재료 시스템: LCO, NCM, NCA, LFP 및 기타 재료 시스템을 포함합니다
• 높은 안전성: 안전 성능 시험 통과
• 충분한 용량: 제품 설계 용량 요건을 충족함
• 고온 저항: 작동 온도 범위 -20°C ~ 80°C

적용 시나리오

• 전자 아토마이저
• 음성 녹음기
• 헤드폰
• 뷰티 기기
